Offset Lifting Beams

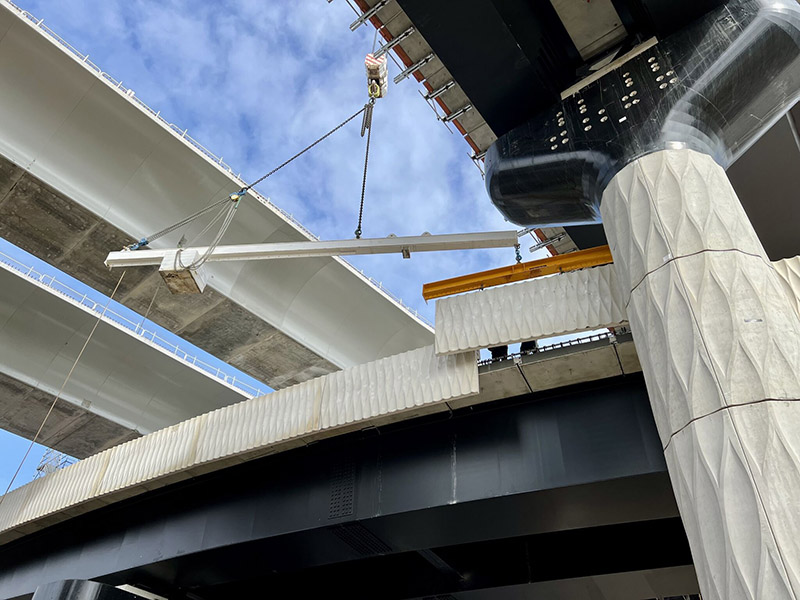

Offset lifting beams or counterweighted lifting beams are now available for hire from our Henderson branch, offset beams are widely used where the load needs to be positioned outside of the crane hook including use with vacuum lifters for glazing work, placing loads below parapets or eaves or beneath floors, our offset beams are the ideal solution where a tower crane needs to position panels inside the radius of the crane.
- Capacities: 634kg – 13563kg WLL
- Offsets from 1.0m to 5.0m
| Beam # | Min WLL | Max WLL | Beam weight | Beam length | Counterweight | Offset lifting points | Download |
| OLB-8L | 634kg @ 2.1m | 2084kg @ 2.1m | 1017kg | 7.5m | 760kg | 2194mm | Download |
| OLB-13 | 722kg @ 1.0m | 3164kg @ 1.5m | 445kg | 4.025m | 950kg | 1.0, 1.25 & 1.5m | Download |
| OLB-18 | 952kg @ 5.0m | 5137kg @ 3.3m | 1600kg | 12.0m | 1600kg | 3.3, 3.7 & 5.0m | Download |
| OLB-20 | 1191kg @2.0m | 9334kg @ 1.0m | 1350kg | 6.16m | 1700kg | 1.0, 1.5 & 2.0m | Download |
| OLB-30 | 2328kg @ 1.5M | 13563kg @ 1.5m | 1500kg | 7.5m | 3100kg | 1.5, 2.0 & 2.5m | Download |
Request a Offset Lifting Beams quote or call our experienced lifting equipment hire specialists today on (08) 9437 2312. We deliver hire gear throughout Perth, regional WA and right across Australia with the assistance of our partners.
