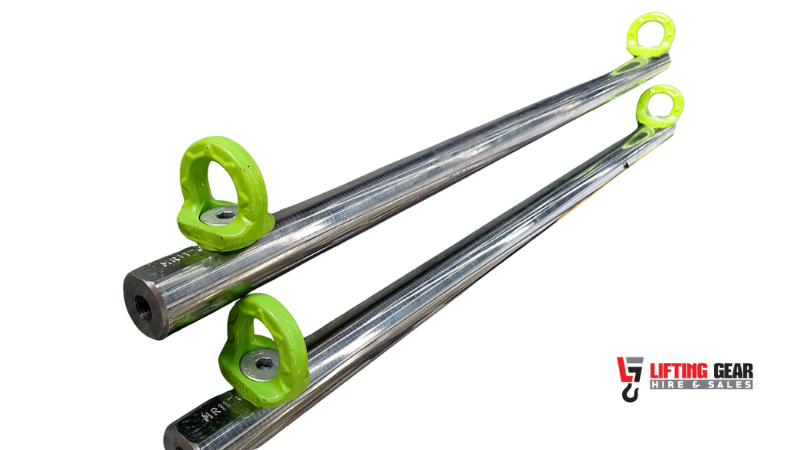

Electrical Cabinet Lifting Bars

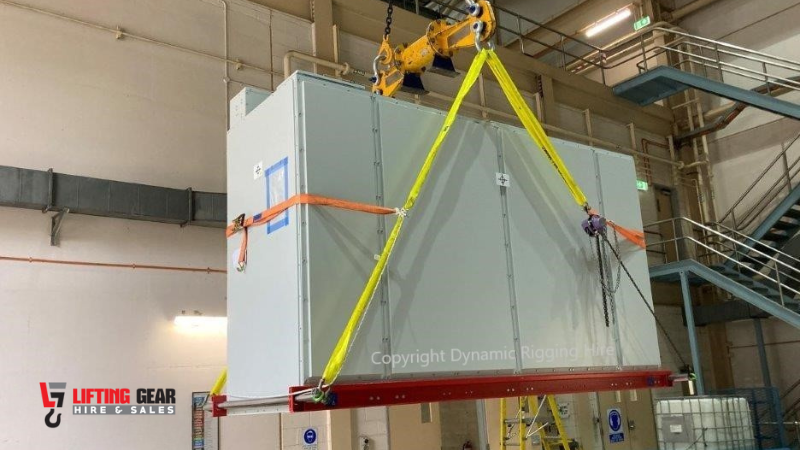

Specifically designed and rated for lifting electrical cabinets are there lifting bars that can cater for cabinet widths from 500-800mm or 500 to 1038mm.
The shorter bars have a maximum load capacity of 3.5t when used with a 60° included sling angle, the longer bars have a 2.5t rating. We can supply a spreader beam to accommodate any with so the lifting slings do not come into contact with the cabinet, lifting slings in synthetic, wire or chain types are also available.
|
WLL |
Load Width Range |
Sling Angle |
Full Certification, Test and Safe Use Documents |
|
3.5t |
500mm – 800mm |
60° |
Yes |
|
2.5t |
500mm – 1038mm |
60° |
Yes |
